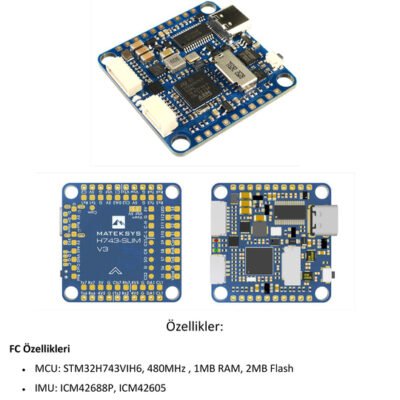

Mateksys Matek H743 Slim V3 30.5×30.5mm Flight Controller

FC Specifications

Brand name: Matek Systems
Item name: H743-SLIM Flight Controller
MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash
IMU: ICM42688P (SPI1) & ICM42605 (SPI4)
Baro: Infineon DPS310 (I2C2)
OSD: AT7456E (SPI2)
Blackbox: MicroSD card socket (SDIO)
7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
13x PWM outputs(including “LED” pad)
2x I2C
1x CAN
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

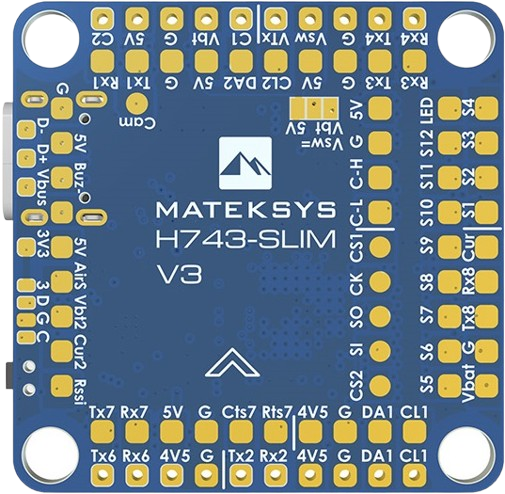

1x SPI3 break0ut
USB Type-C(USB2.0)

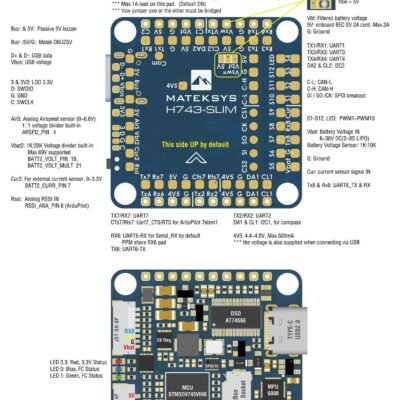

1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)
Dual Camera Inputs switch
5V/Vbat filtered power ON/OFF switch
DJI FPV OSD is supported by any spare UART
Vbat Input: 6~36V (2~8S LiPo)
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.200mA
No Current Sensor built-in
ADC Vbat2 pad supports Max. 69V (voltage divider: 1K:20K)
Static power: 200mA@5V with Betaflight, 150mA@5V with ArduPilot
FC Firmware

ArduPilot(ChiBiOS): MATEKH743
BetaFlight: MATEKH743
INAV: MATEKH743
Physical

Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 36 x 36 x 5 mm
Weight: 7g
